Set wth 830 pins breadboard and power module MB102

Product information:

Set of an 830 pin breadboard and a power supply module MB102.
A great start to your electronics project!

Breadboard:

Breadboard 830 pins - universal experiment board.
Develop electronics projects without soldering!
This 830 pin breadboard will make your electronics hobby even more fun!

Dimensions: 8.2cm x 5.5cm x 1cm

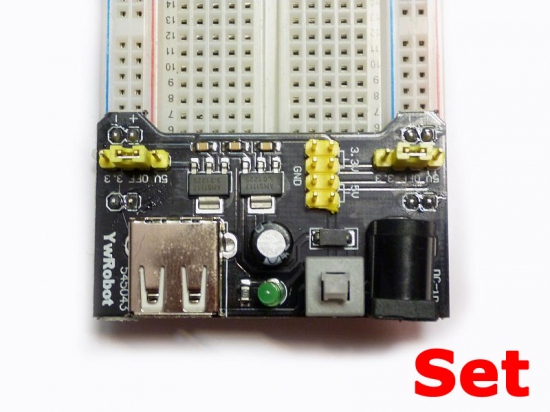

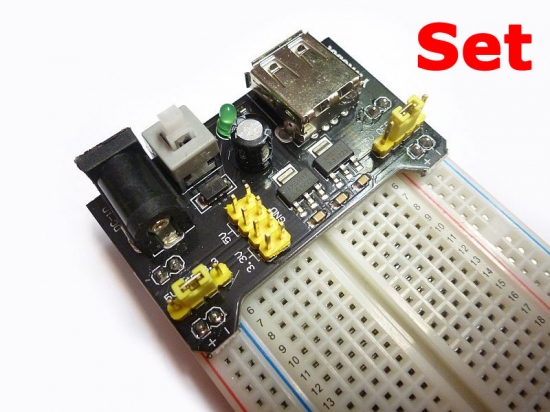

Power module:

Handy power module for your MB102 breadboard. Press this module on your breadboard, connect power with a DC2.1 jack or USB power supply and you have all the voltages you need.

The power supply can provide 0.0, 3.3 or 5V voltage over 2 rails of your breadboard. You can set this per rail by means of a jumper.
The power supply itself also has header pins for 3.3V (2x), 5V (2x) and GND (4x).
With on/off switch and indicator LED.

Input voltage: 6.5V - 12V.
Maximum output: <700mA.

Supplied without power supply.

(400 Pin breadboard shown.)
