Product information:

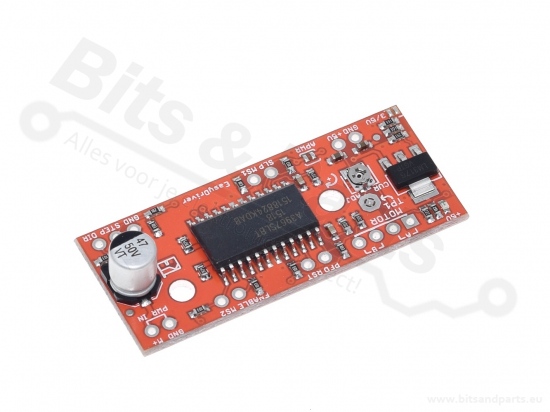

The EasyDriver A3967 is an easy to use stepper motor driver, compatible with anything that can output a digital pulse signal of 0-5V (or 0-3.3V if you connect SJ2 on the EasyDriver).

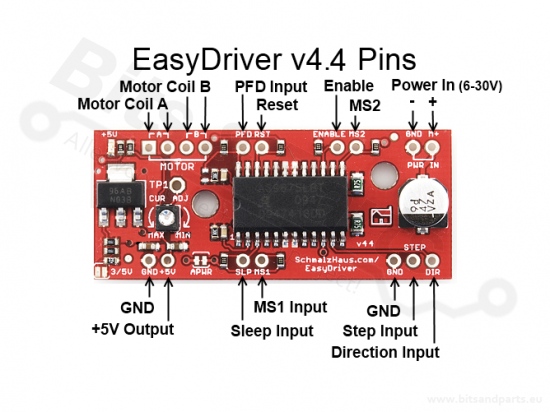

The MS1 and MS2 pins of the driver are accessible to set the microstepping resolution to full, half, quarter or eighth steps (default eighth).

Compatible with 4, 6 and 8 wire stepper motors of any voltage.

Adjustable current control from 150mA/phase to 750mA/phase.

Can be powered by a power supply of 7V to 30V. The higher the voltage, the higher the torque at higher speeds.


More information at http://schmalzhaus.com/EasyDriver

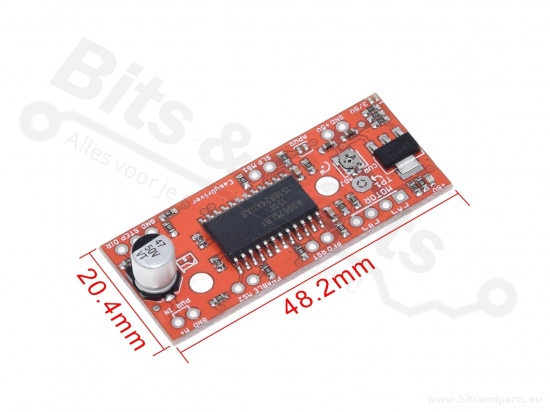

Dimensions: 4.8cm x 2cm.

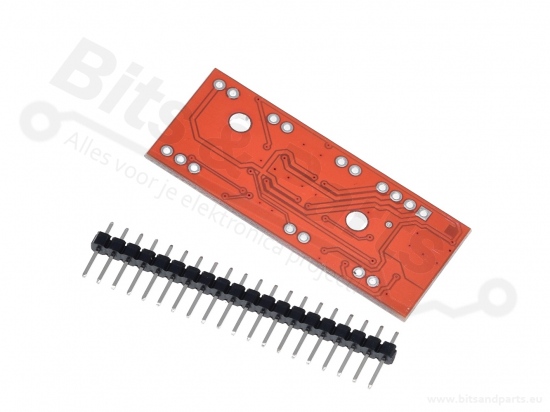

Supplied with header pins.
