Transistor N-MOSFET IRF540 4-way board
Product information:

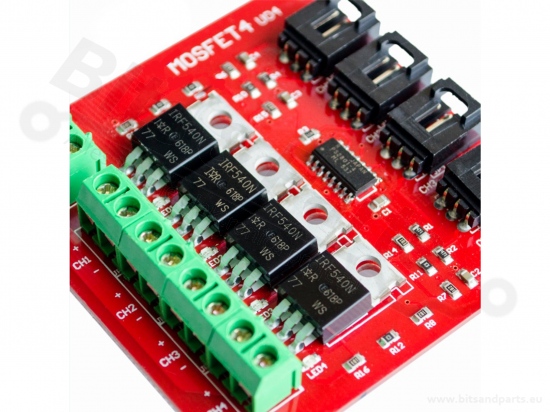

Board with 4 IRF540 mosfets for controlling motors, LEDs, etc.
With screw terminals and header pin connections.
MOSFETs have good switching characteristics and are widely used to control almost any DC load. This is a 4-channel MOSFET switch and uses the very popular IRF540 MOSFET. It is perfect for switching DC loads up to 10A.

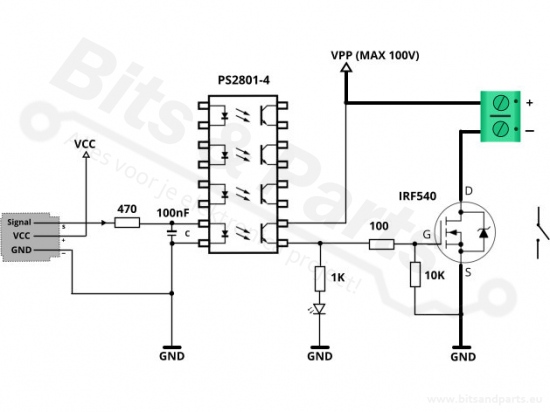

The module is opto-isolated, note that the GROUND connections are common, so there is no complete isolation. Not really a biggy for DC Loads, but something to consider. The module is effectively a "Solid-State Relay" for DC.

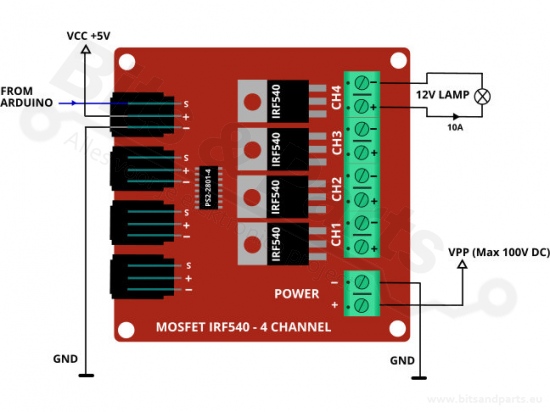

Up to 4 separately controllable loads can be connected to the (+) and (-) switched outputs, all powered from a common power rail.
- Max. control voltage (signal): 6V
- LED indicator for each channel
- Chipset: IRF540
- Opto-isolator used: PS2801-4
- Max. switching current: 10A (absolute max. 33A with heat sink)
- Max. switching voltage: 100V
>
