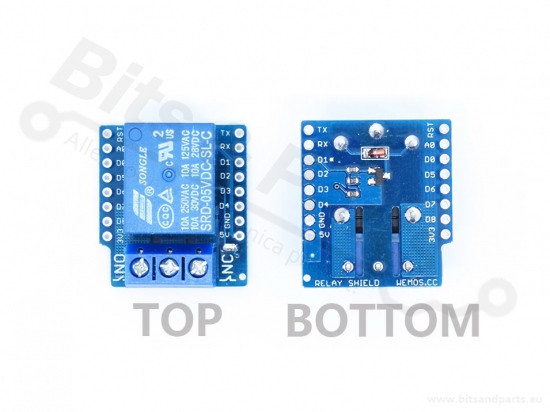

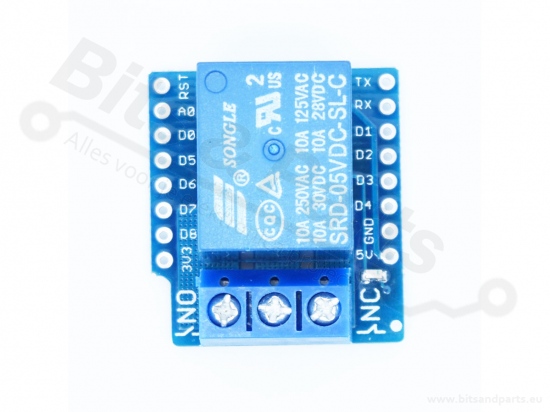

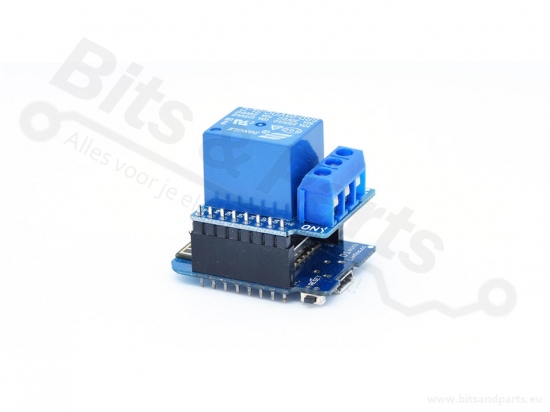

WeMos D1 mini relay shield v2

WeMos D1 mini relay shield v2

Product information:

With that shield for the WeMos D1 mini you have a relay at your disposal. By controlling pin D1 you can switch the relay on and off.
A device of max. 250VAC/5A can be connected to the relay.
The NO (normally open) connection makes no contact when idle, only when the relay is switched on.
The NC (normally closed) connection makes contact when idle, but not when the relay is switched on.

Used pins to the WeMos:
- D1
- 5V (max.1A)
- GND

NO: 5A(250VAC/30VDC), 10A(125VAC), Max.:1250VA/150W
NC: 3A(250VAC/30VDC), Max.:750VA/90W

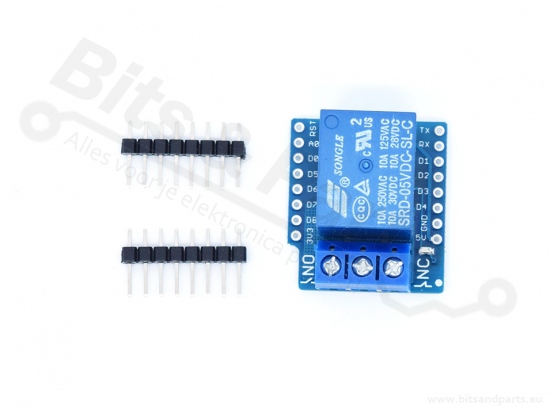

Supplied with loose header pins.

See the programming example under the documentation heading and check out the website link for more programming examples.
