WeMos D1 mini SHT30 shield

Product information:

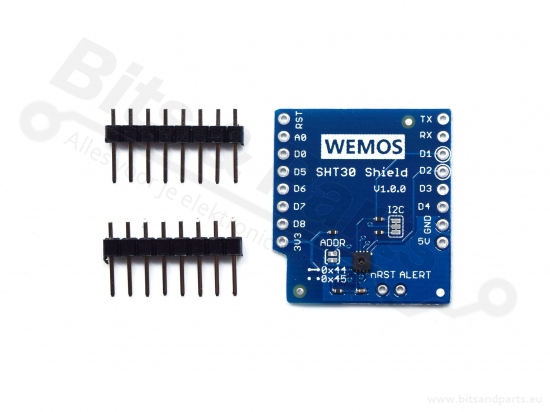

This shield for the WeMos D1 mini has an SHT30 digital I2C temperature and humidity sensor.
With adjustable I2C address (0x44/0x45), using a solder bridge.

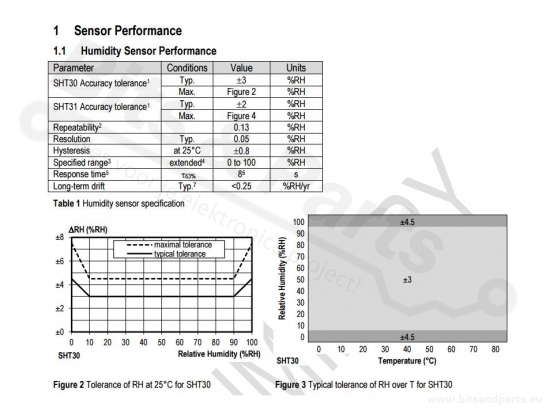

Accuracy:
Humidity: ±3%RH

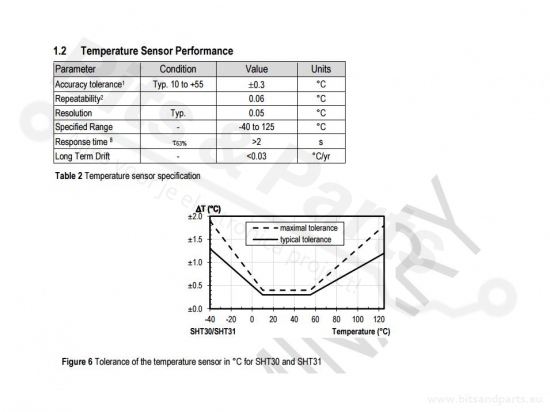

Temperature: ±0.3°C

Used pins to the WeMos:
- D1 (SCL)
- D2 (SDA)
- 3V3
- GND

Supplied with loose header pins.

See the website link for programming examples.

Click to view the product's website.Click to view the product's website.

Documentation

:
icon_filetype_pdf
Datasheet SHT30-DIS_datasheet.pdf (English)
icon_filetype_pdf
Technical Drawing (English):
sht30_sch.pdf
