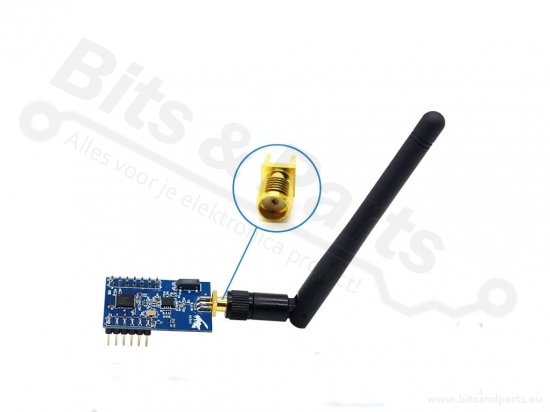

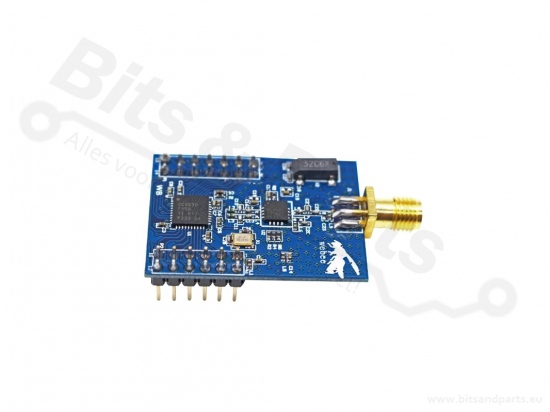

ZigBee CC2530 + CC2591 board with antenna

ZigBee CC2530 + CC2591 board with antenna

Product information:

CC2530 ZigBee module with CC2591 amplifier and external antenna.
Compatible with ZigBee2MQTT (see left).

For instructions on how to provide the board with custom firmware for zigbee2mqtt so that you can use it with Domoticz and other home automation, see the following sites:
https://www.zigbee2mqtt.io/

You can also use an Arduino or an ESP8266 for programming. With a NodeMCU it is quite easy:
https://www.zigbee2mqtt.io/information/alternative_flashing_methods.html

More Domoticz information:
https://github.com/stas-demydiuk/domoticz-zigbee2mqtt-plugin

RF chip: CC2530F256+CC2591
Carrier frequency: 2.4GHz
Transmit power: 2. 5mW
Wireless standard: 802.15.4 protocol
Frequency range: 2.405GHz ~ 2.480GHz
Transmitting power: programmable up to 21dBm.
ZigBee protocol: ZigBee protocol stack (Z-Stack"*)
Receive sensitivity: -97dBm@250kbps
Antenna: 2.4G antenna with external SMA interface
Transmission distance: open visual distance up to 800m (PA maximum transmission power 21dBm)
Voltage: 2.0V- 3.6V
Transmission rate: wireless transmission rate up to 250kbps

https://www.zigbee2mqtt.io/information/connecting_cc2530.html

https://www.zigbee2mqtt.io/how_tos/how_to_create_a_cc2530_router.html
