Display LCD Nokia 5110/3310 with blue backlight

Display LCD Nokia 5110/3310 with blue backlight

Product information:

Monochrome LCD display known from the Nokia 5110/3310 phones.

Operates on 3.3V and has a PCD8544 display driver chip.

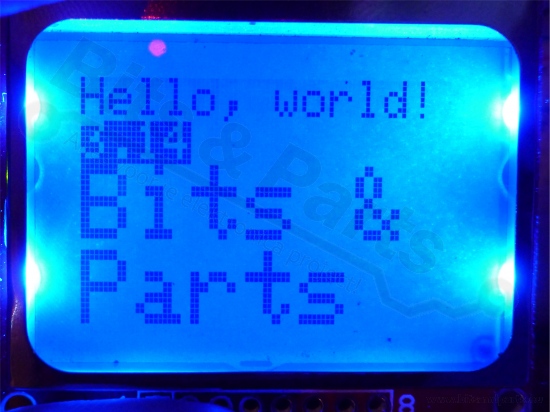

Using the PCD8544 library (see documentation) you can display text and (custom) graphics on the display.

The logic levels are also 3.3V; connecting directly to the output of your Arduino is not recommended. It is best to put a converter in between (e.g. a 4050 chip) or 10K ohm resistors if you want to keep it simple (see documentation).

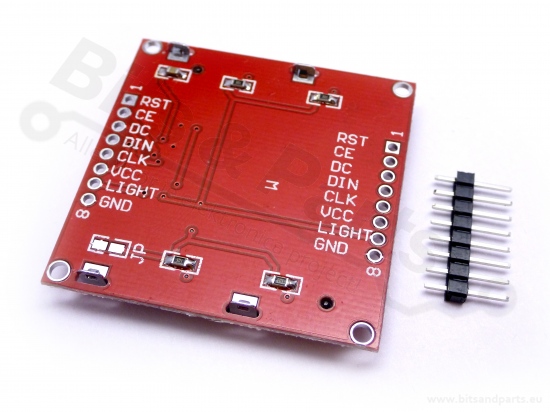

Supplied with header pins (8x1).
Backlight color: blue

Connections:
Pin 1 RST - Arduino 3 (possibly via 10K resistor or level converter)
Pin 2 CE/CS - Arduino 4 (possibly via 10K resistor or level converter)
Pin 3 DC - Arduino 5 (possibly via 10K resistor or level converter)
Pin 4 DIN - Arduino 6 (possibly via 10K resistor or level converter)
Pin 5 CLK - Arduino 7 (possibly via 10K resistor or level converter)
Pin 6 VCC - Arduino 3.3V
Pin 7 LIGHT - Arduino GND
Pin 8 GND - Arduino GND

Dimensions:
Module: 43.7 x 43.3 x 4.9mm
Effective display size: approx. 30.0 x 20.0mm
