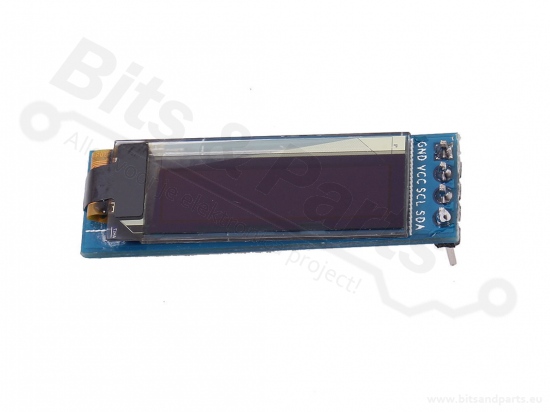

Display OLED 128x32 0.91 inch I2C White

Display OLED 128x32 0.91 inch I2C White

Product information:

An energy-efficient OLED display with white pixels. The OLED pixels themselves emit light so no backlight is needed.
With SSD1306 driver IC that can be controlled by many microcontrollers (including Arduino, MSP430 series, 51 series, STM32 and CSR IC).
Due to the communication via I2C, the display only needs 2 IO pins.

Ultra low power consumption; 0.04W with all pixels on.
Voltage: 3.3V-5V
Resolution: 128x64px
Viewing angle: 160°
Works from -30℃ to 80℃

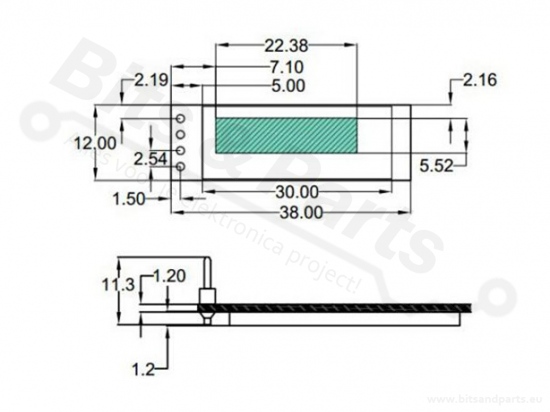

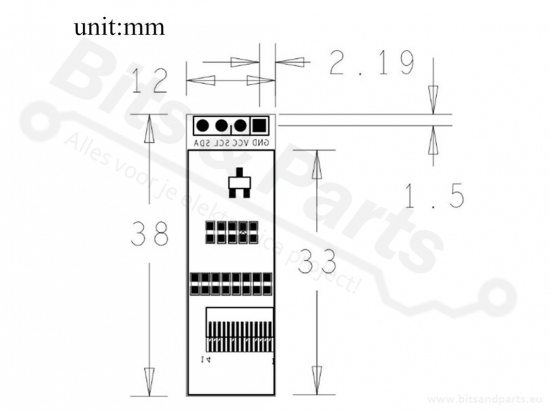

Module dimensions: 38 x 12 x 12mm
Screen dimensions: 22.38 x 5.52mm
Pixel color: white (shown blue)
Background color: black

Connecting is simple, connect SDA and SCL to the corresponding pin on the Arduino, VCC to 3.3 or 5V of the Arduino and GND to GND of the Arduino.

Compatible with the Adafruit SSD1306 library.

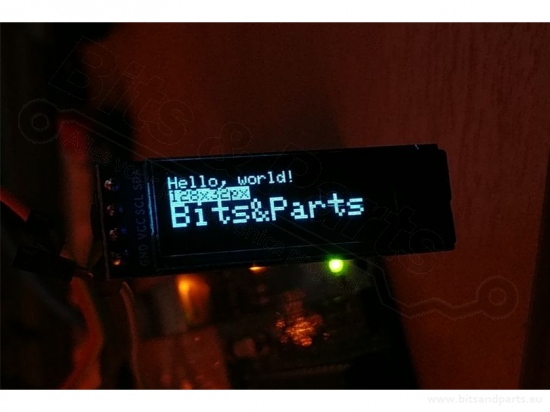

See our example and the website link for the library.
NB!
The default address for the display is 0x3C.
Line 61: display.begin(SSD1306_SWITCHCAPVCC, 0x3C);

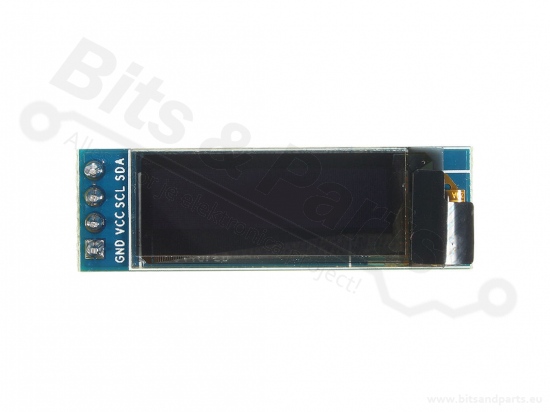

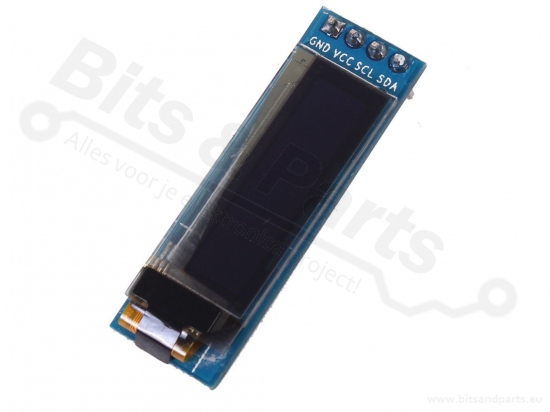

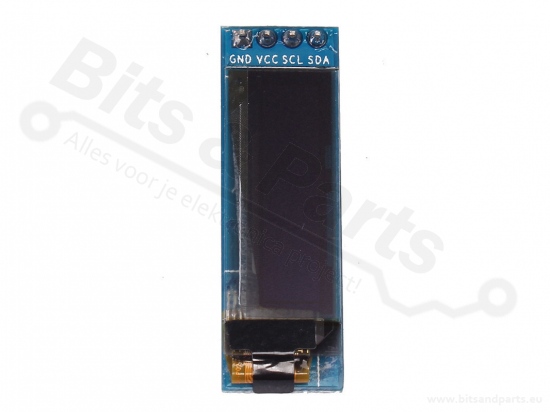

Pinout:

VCC: 3.3-5.0V
GND: ground
SCL: serial clock
SDA: serial data
