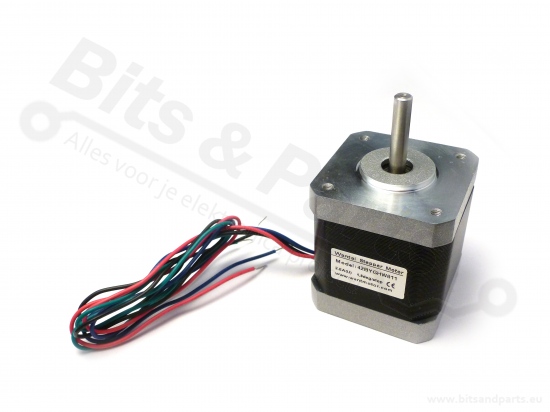

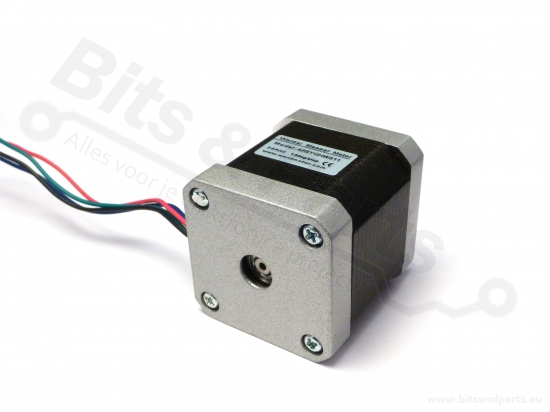

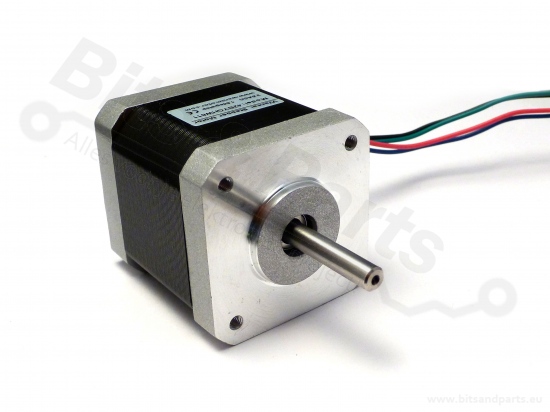

Stepper motor NEMA17 Wantai 42BYGHW811
Specifications
:| Holding torque | : | 47,0 N-cm |
| Rated voltage | : | 3,1V |
| Axle diameter | : | 5mm |
| Step angle | : | 1,8° |
| Rated current | : | 2,5A |
| Motor length | : | 48mm |
| Number of wires | : | 4 |
| Induction | : | 1,8mH |
| Resistance | : | 1,25Ohm per spoel |
| Detent torque | : | 280g-cm |
| Rotor inertia | : | 68g-cm2 |
| Step accuracy | : | +/-5% |
| Brand | : | Wantai |
| Type | : | 42BYGHW811 |
Documentation
:
Datasheet wiring_diagram.jpg (Multiple languages)
