Transistor 2N3906 PNP 200mA 40V

Transistor 2N3906 PNP 200mA 40V

Product information:

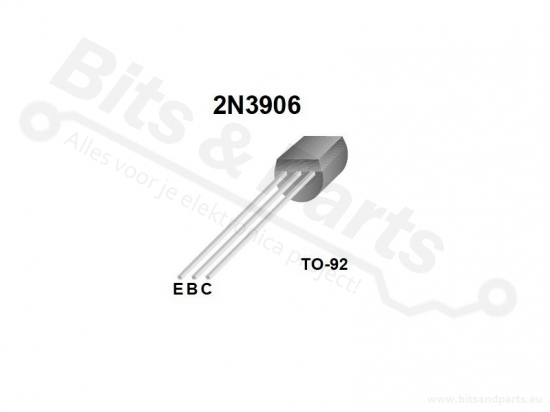

The 2N3906 transistor is known for its reliability and precision in electronic circuits. As a PNP-type transistor, the 2N3906 offers a maximum current of 200 mA and a maximum voltage of 40 V, making it ideal for applications that require precise control.

With a low collector-emitter voltage (VCE) and a high current gain factor (hFE), the 2N3906 is suitable for use in switching circuits, voltage regulators and current sources. The compact TO-92 package makes it easy to integrate this transistor into various electronic designs.

What Does a PNP Transistor Do?

A PNP transistor is a type of bipolar transistor that operates by applying a small current or voltage between the base and the emitter to control a much larger current between the emitter and the collector. The key feature of a PNP transistor is that current flows from the emitter to the collector (unlike an NPN transistor, where current flows from the collector to the emitter).

What a PNP transistor does:

Switching: If the base of the PNP transistor is lower than the emitter (more negative), the transistor turns 'on,' allowing current to flow from the emitter to the collector. This is used to switch current circuits.

Amplifying: Similar to an NPN transistor, a PNP transistor can use a small input current (base current) to control a larger current through the collector. This makes it a useful amplifier for signals.

The base current of a PNP transistor must be negative relative to the emitter to turn the transistor on, meaning the circuit and polarity diagram are often reversed compared to an NPN transistor.

In summary: A PNP transistor allows current to flow from the emitter to the collector if the base has a lower voltage than the emitter.
