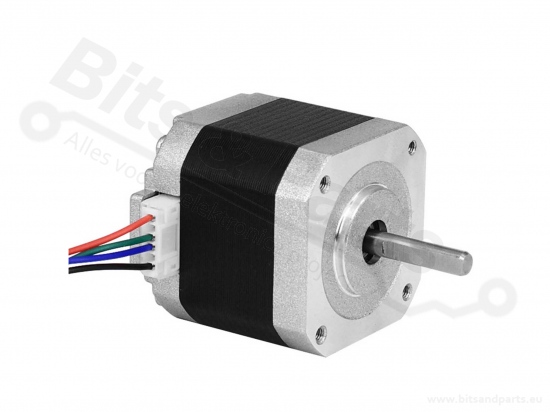

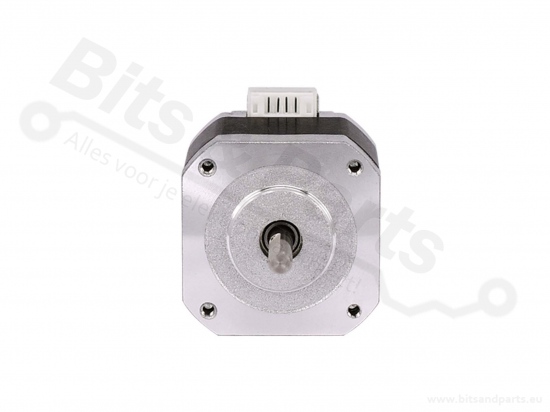

Stepper motor NEMA 17 17HS4401
Specifications
:| Holding torque | : | 40N-cm |
| Rated voltage | : | 3,6V |
| Axle diameter | : | 5mm |
| Step angle | : | 1,8° |
| Rated current | : | 1,5A |
| Motor length | : | 63,5mm |
| Number of wires | : | 4 |
| Induction | : | 2,8mH |
| Resistance | : | 1,5Ohm per spoel |
| Detent torque | : | 2,2N-cm |
| Rotor inertia | : | 54g-cm2 |
| Step accuracy | : | 0,09° |
| Type | : | 17HS4401 |
| Axle length | : | 21mm |
