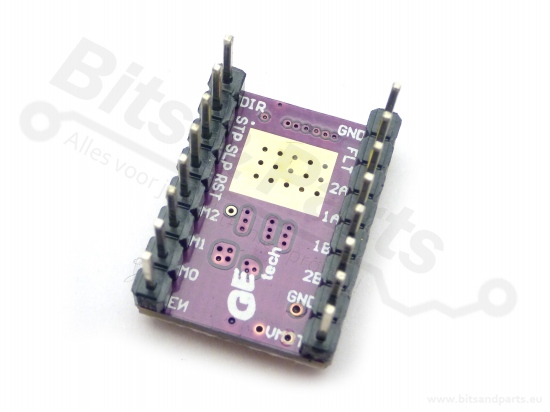

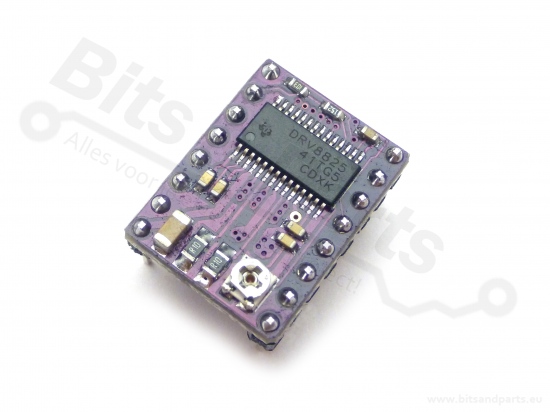

Stepper motor driver stepstick DRV8825 for 3D printers

Stepper motor driver stepstick DRV8825 for 3D printers

Product information:

DRV8825 Stepstick stepper motor driver for, among others. 3D printers.

Model: DRV8825
Input voltage: 3.3 - 5 volts
Dimensions: 20x16mm
Maximum output: 1.5A and 2.2A with sufficient cooling.

Simple step and direction interface. Breakout board for the DRV8825 microstepping bipolar stepper motor driver from TI.

Six different step resolutions: full step, half step, quarter step, 1/8th step and 1/16th step and 1/32nd step. The board has almost the same pinouts as the A4988 and can therefore be used as a higher-performance replacement.

With the potentiometer you can set the maximum current, allowing you to use higher voltages on your motor to achieve higher step speeds.

The board comes with header pins.

I.a. for RepRap 3D printers.

https://lastminuteengineers.com/drv8825-stepper-motor-driver-arduino-tutorial/
