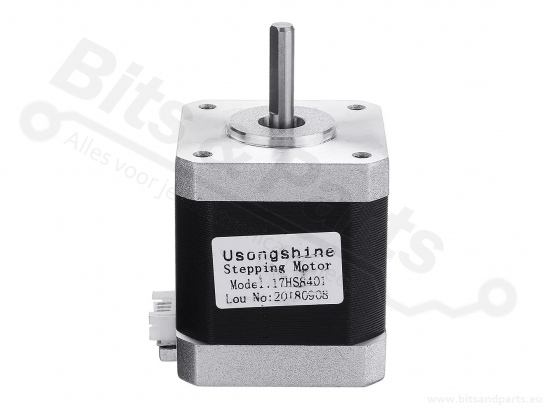

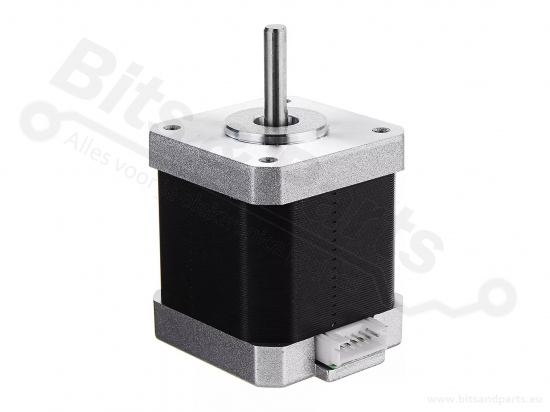

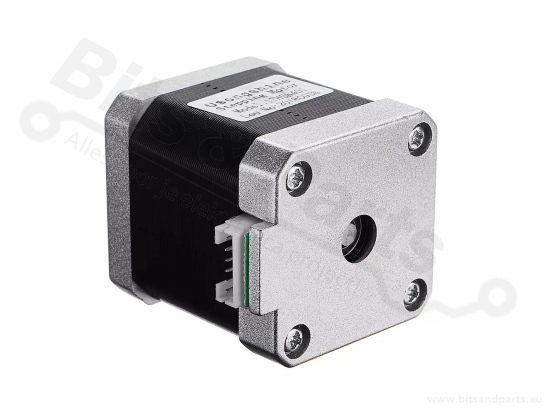

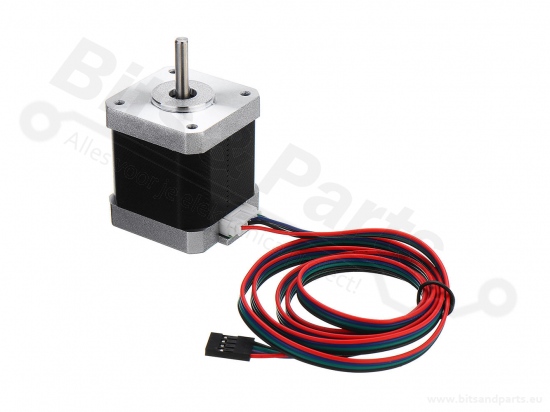

Stepper motor NEMA 17 17HS8401B
Specifications
:| Holding torque | : | 52,0 N-cm |
| Axle diameter | : | 5mm |
| Step angle | : | 1,8° |
| Rated current | : | 1,7A |
| Motor length | : | 48mm |
| Number of wires | : | 4 |
| Induction | : | 3,2mH |
| Resistance | : | 1,8Ohm per spoel |
| Detent torque | : | 2,6N-cm |
| Rotor inertia | : | 68 |
| Step accuracy | : | 5% |
| Type | : | 17HS8401 |
| Cable length | : | 100cm |
| Axle length | : | 24mm |
