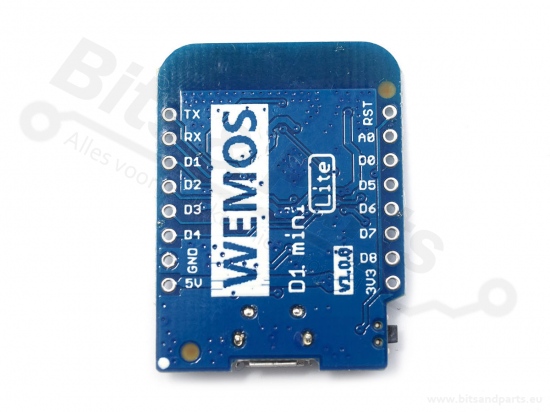

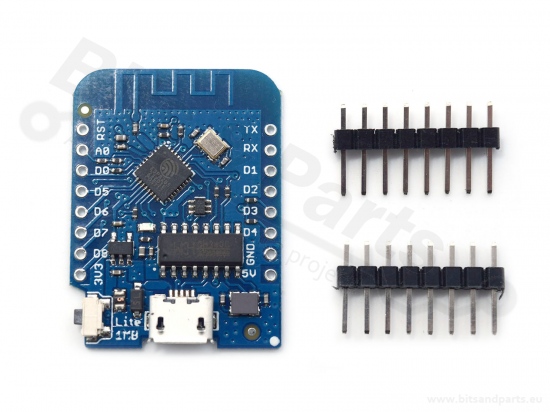

WeMos D1 mini lite - ESP8285 WiFi development board

WeMos D1 mini lite - ESP8285 WiFi development board

Product information:

Getting your electronics project online has never been easier! The WeMos D1 mini Lite is a compact WiFi development board with the ESP-8286 chip.
All pins of the ESP-8286 are available for making circuits.
Various shields are available for the board (see additional articles) to expand its functionality.
Easy upload of programs through the micro USB connection (cable not included).

The ESP-8286 on the WeMos D1 mini Lite can be programmed using either the Arduino IDE development environment or the NodeMCU Lua programming language. (See the website link for tutorials on both options.)

The WeMos D1 mini Lite has a CH340G chip on board for serial communication with a PC or Mac. The drivers for this (if the computer does not recognize it yet) are under the heading documentation. The board will be visible in the development environment as an extra COM/ttyS port.

Specifications:

- 11 digital input/output pins
- 1 analog input (3.2V max.)
- all pins have interrupt/PWM/I2C/One-wire support (except pin D0).
- micro USB connection
- reset button
- signal level on all pins: 3.3V
- compatible with Arduino IDE (automatic upload)
- compatible with NodeMCU
- clock speed: 80MHz/160MHz
- flash memory: 1M bytes
- dimensions: 34.2mm x 25.6mm x 6.7mm
- weight: 3.9g (without pins) / 10g
- 500mA resettable fuse

Pinout:
