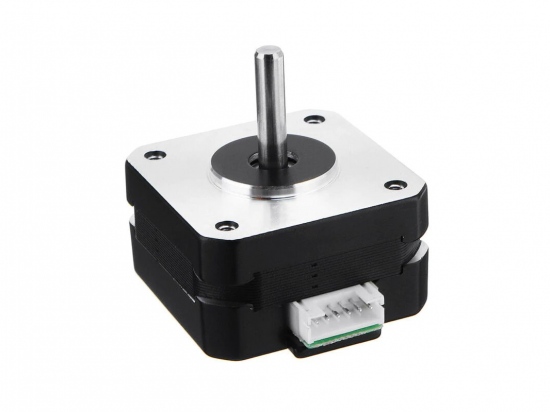

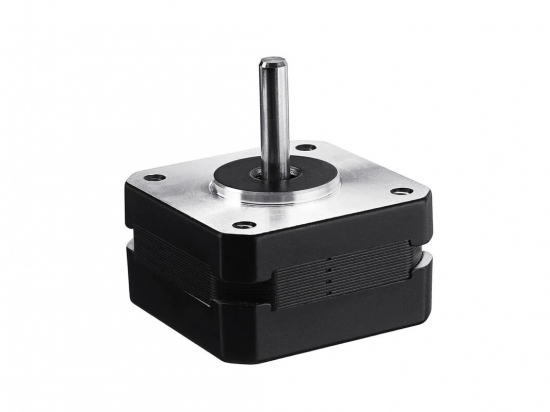

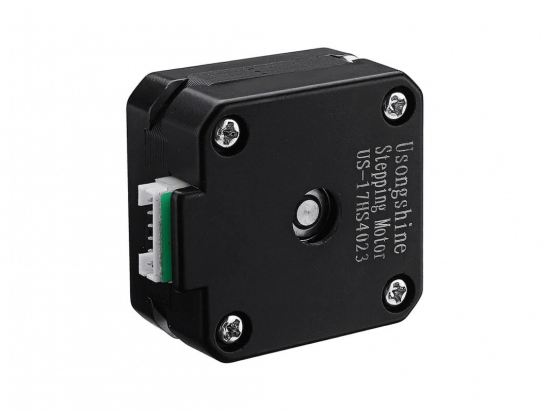

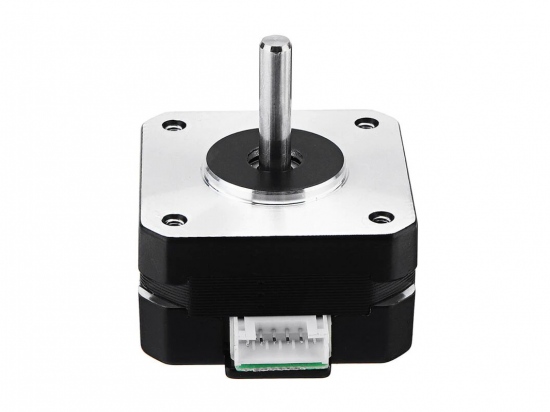

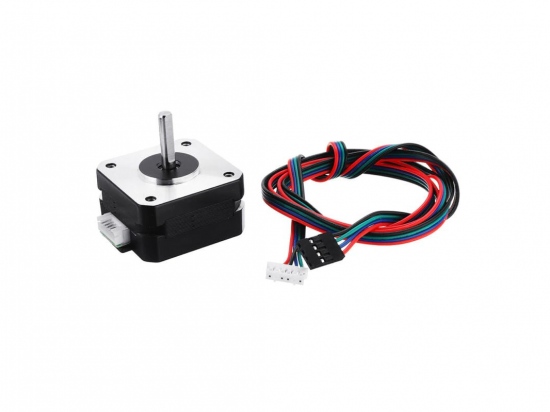

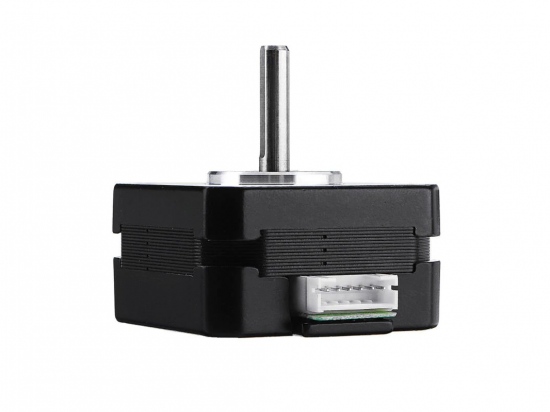

Stepper motor NEMA 17 17HS4023 i.a. Titan extruders
Specifications
:| Holding torque | : | 14,0 N-cm |
| Rated voltage | : | 12V |
| Axle diameter | : | 5mm |
| Step angle | : | 1,8° |
| Rated current | : | 0,7A / phase |
| Motor length | : | 46,5mm |
| Number of wires | : | 4 |
| Induction | : | 3,2 |
| Resistance | : | 4,0 |
| Step accuracy | : | 5% |
| Type | : | 17HS4023 |
| Axle length | : | 21mm |
